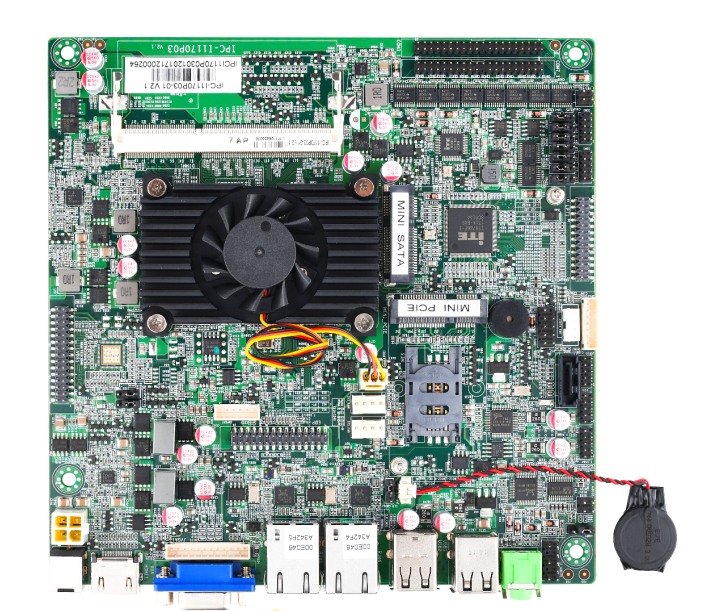

Intel Celeron J1900 J1800 170MMX170MM Low-Power PCIe TDP 10W Industrial Motherboard
IPC-I1170P03: Fodenn supplies 17*17mm Boards based on Intel J1900 / J1800 processor, support 8*USB,6*COM port with multifunction, OEM/ODM available,VGA HDMI LVDs/eDP Triple Displays, Full Mini-PCIE for 3G/4G/Wifi
Platform :
EmbeddedSize Type :
17*17mmCPU :
Intel Celeron J1900/J1800 Quad Core TDP 10WRAM (Memory) :
DDR3L-1333， 1*SO-DIMM up to 8GBLAN :
2*RJ45 Gigabit LANCOM :
1-2*COM 2X5KEY10 2.0 pin, COM3-10 is a combination pin, COM2 supports RS422/RS485USB :
4*USB2.0 Port, 2*USB 2X5KEY 9Pin2.0Display :
1*VGA+1*HDMI +1*EDPItem No :
IPC-I1170P03Brand :
FodennEfficient Processing Power: The IPC-I1170P03 17*17mm mainboard is equipped with the Intel Celeron J1900/J1800 Quad Core processor, offering TDP of just 10W for efficient power consumption without sacrificing processing capabilities.
Expandable Memory and BIOS: With a single SO-DIMM slot supporting DDR3L-1333 memory and the ability to expand up to 8GB, this 17*17mm board is future-proof for growing industrial needs. The AMI UEFI BIOS ensures smooth system management and easy configuration.
Advanced Graphics and OS Support: Integrated Intel HD Graphics provides crisp visuals, while support for Windows 7/8/10, Linux, and UNIX operating systems ensures compatibility with a wide array of industrial software.
Comprehensive I/O Connectivity: The single board computer features 2 Gigabit LAN ports for reliable networking, a variety of display interfaces including VGA, HDMI, and EDP/LVDS, and a 5.1 Channel sound card with LINE-OUT and MIC-IN with built-in amplifier. It also offers 6-8 USB ports and a PS/2 Pin header for extensive peripheral support.
Extended Internal I/O: With 6 COM interfaces and a full-length MINI-PCIE slot for 3G/4G/WIFI expansion, the IPC-I1170P03 Intel Bay Trail motherboards provides ample options for connecting external devices and enhancing system capabilities.
Durable Storage and Operation: The SBC mainboard includes 1 SATA2.0 and 1 MSATA slot for storage, 8bits digital I/O for GPIO, and supports input voltages of ±12V. It is designed to operate in temperatures ranging from 0℃ to 60℃, making it suitable for harsh environments.
|
Processor |
CPU |
Intel Bay Trail J1900/J1800 2.0GHz |
|
|
TDP |
10W |
|
|
BIOS |
AMI EFI 64MBIT |
|
|
Chipset |
Bay Trail J1900 |
|
Memory |
Slot/Type |
1*SO-DIMM DDR3L 1333/1600 1.35V |
|
|
Maximum Memory |
8GB |
|
Display |
GPU |
Intel HD Graphics |
|
|
Output Port |
1*VGA+1*HDMI +1*EDP |
|
Audio |
ALC 662 |
1*LINE-OUT，1*MIC IN, 1*LINE-IN |
|
Network Card |
RTL 8111EGigabit LAN |
2*RJ45 |
|
Other Functions |
Watchdog |
256 levels, programmable 0-255 seconds / min |
|

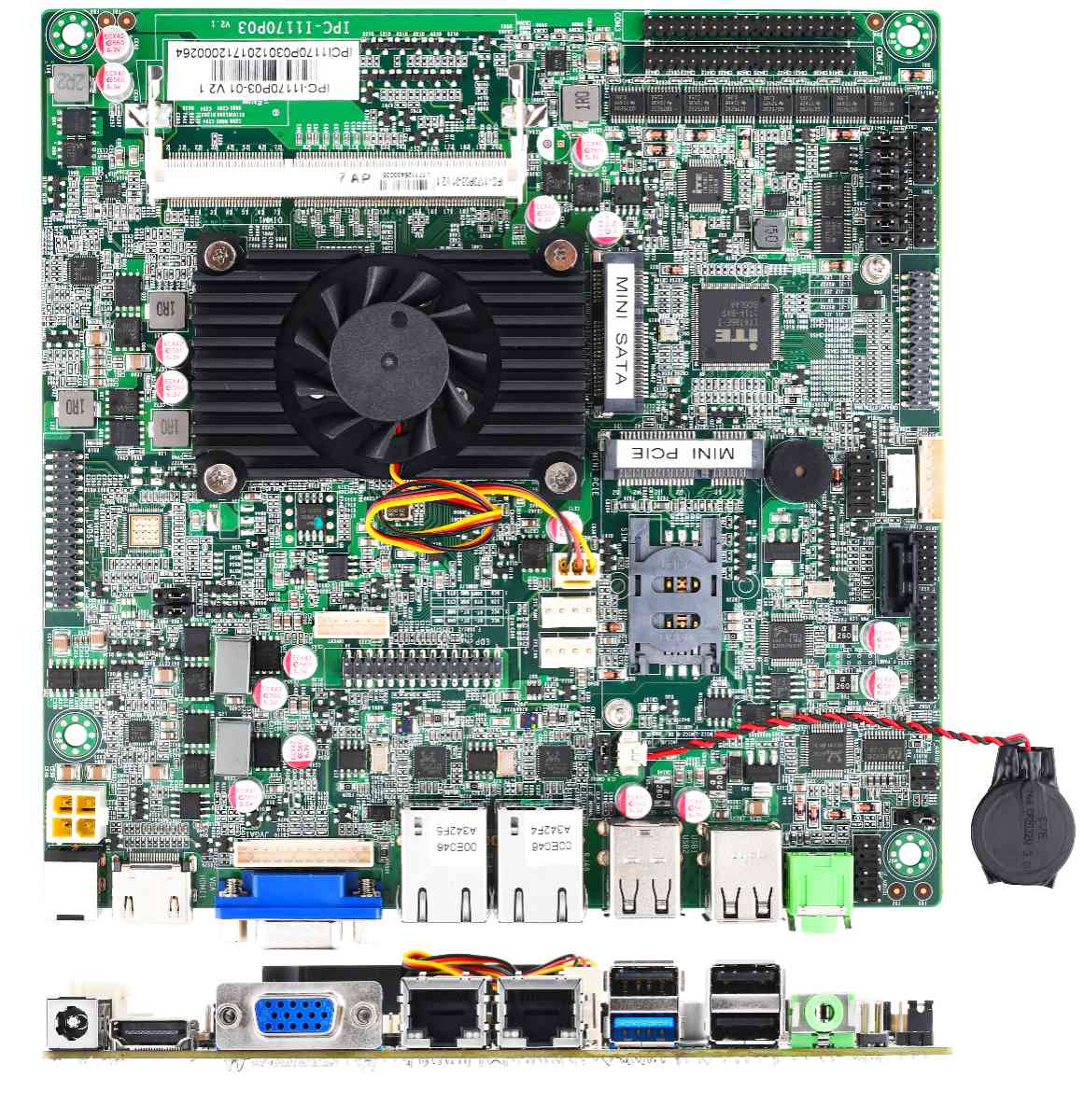

Rear I/O Port |
Display Port |
1*VGA+1*HDMI |
|
|
LAN Port |
2*RJ45 Gigabit |
|
|
USB Port |
4*USB2.0 Port |
|
|
Audio Port |
1*LINE-OUT,1*MIC N, 1*LINE-IN |
|
|
Power Port |
1*DC 12V voltage |
|
Expandable Port |
USB Pin |
2*USB 2X5KEY 9Pin2.0 |
|
|
1*EDP Pin |
1*2X15 Pin |
|
|
LVDS Pin |
None |
|
|
MINI-PCIE |
1*full length MINI-PCIE expandable MSATA 1*full length MINI-PCIE expandable 3G/4G/WIFI |
|
|
COM Pin |
1-2*COM 2X5KEY10 2.0 pin, COM3-10 is a combination pin, COM2 supports RS422/RS485 |
|
Storage |
SATA Port |
1*SATA2.0，1*MSATA |
|
Physical parameters |
||
|
Operating System |
WIN7,WIN8，WIN8.1，LINUX，UNIX |
|
|
Dimensions |
170MMX170MM |
|
|
Environment |
Operating Temperature: 0-60℃ |
|
|
|
Relative Temperature:0-95%RH |
|
The IPC-I1170P03 single board computer is a miniature powerhouse suitable for industrial automation, rail transit, financial machinery, medical and social security devices, mini PCs, interactive kiosks, all-in-one machines, self-service terminals, cloud endpoints, OPS terminals, industrial control machines, edge computing, network gateways, machine vision, and AI computers.
